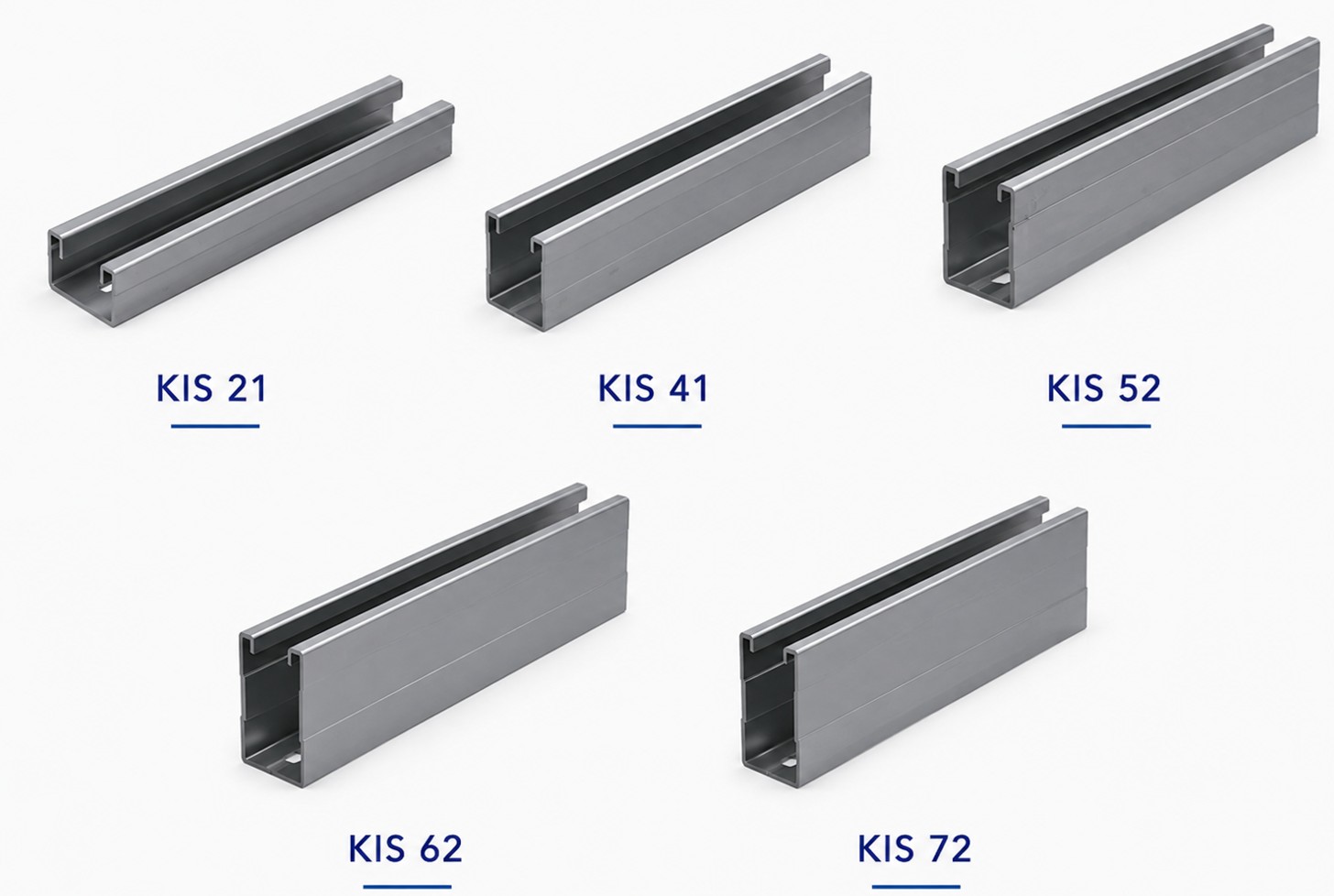

Single-sided, cold-formed C-type strut channel in five sizes (KIS 21–72). A stiffening rib boosts bending strength and serrated in-turned edges grip channel nuts and fittings for anti-slip, anti-shear connections.
Strut channel (also called C-channel, slotted channel or metal framing channel) is the structural backbone of support and seismic bracing systems. Channel nuts, brackets, clamps and braces slide into the opening and lock anywhere along its length, so frames, racks and hangers can be built and adjusted on site without drilling.
| Part No. | Description | Thickness (mm) | Section Height (mm) | Weight (kg/m) | Length (m) |
|---|---|---|---|---|---|
| 101-003-200-235-4-00 | Channel 21 / 2.0 (KIS 21) | 2.00 | 21 | 1.47 | 3 / 6 |
| 102-003-200-235-4-00 | Channel 41 / 2.0 (KIS 41) | 2.00 | 41 | 2.13 | 3 / 6 |
| 103-003-250-235-4-00 | Channel 52 / 2.5 (KIS 52) | 2.50 | 52 | 3.01 | 3 / 6 |
| 104-003-250-235-4-00 | Channel 62 / 2.5 (KIS 62) | 2.50 | 62 | 3.40 | 3 / 6 |
| 105-003-250-235-4-00 | Channel 72 / 2.5 (KIS 72) | 2.75 | 72 | 4.20 | 3 / 6 |
Tell us the sizes, lengths and finish you need — we'll quote within 24 hours.
