What size range and load do they cover?

DN65 to DN300. O-type and P-type clamps have a design load of 9.5 kN; U-type clamps 4.75 kN, depending on size.

What is the material and finish?

Q235B carbon steel to GB/T 700-2006, zinc-chromate coating to GB/T 18684-2002 as standard, with electro-galvanized or hot-dip galvanized finishes on request.

Home / Products / Pipe Clamps & Rings

Product 06

Pipe Clamps & Rings

The full clamp range that secures pipe to the support and bracing system — O, U, P and omega clamps, insulated clamps and light / standard / heavy-duty types for DN65–DN300, with design loads up to 9.5 kN.

DN65–DN300Load to 9.5 kNO / U / P / OmegaInsulated optionsQ235B · Zinc-Chromate

Get a Quote → WhatsApp Us

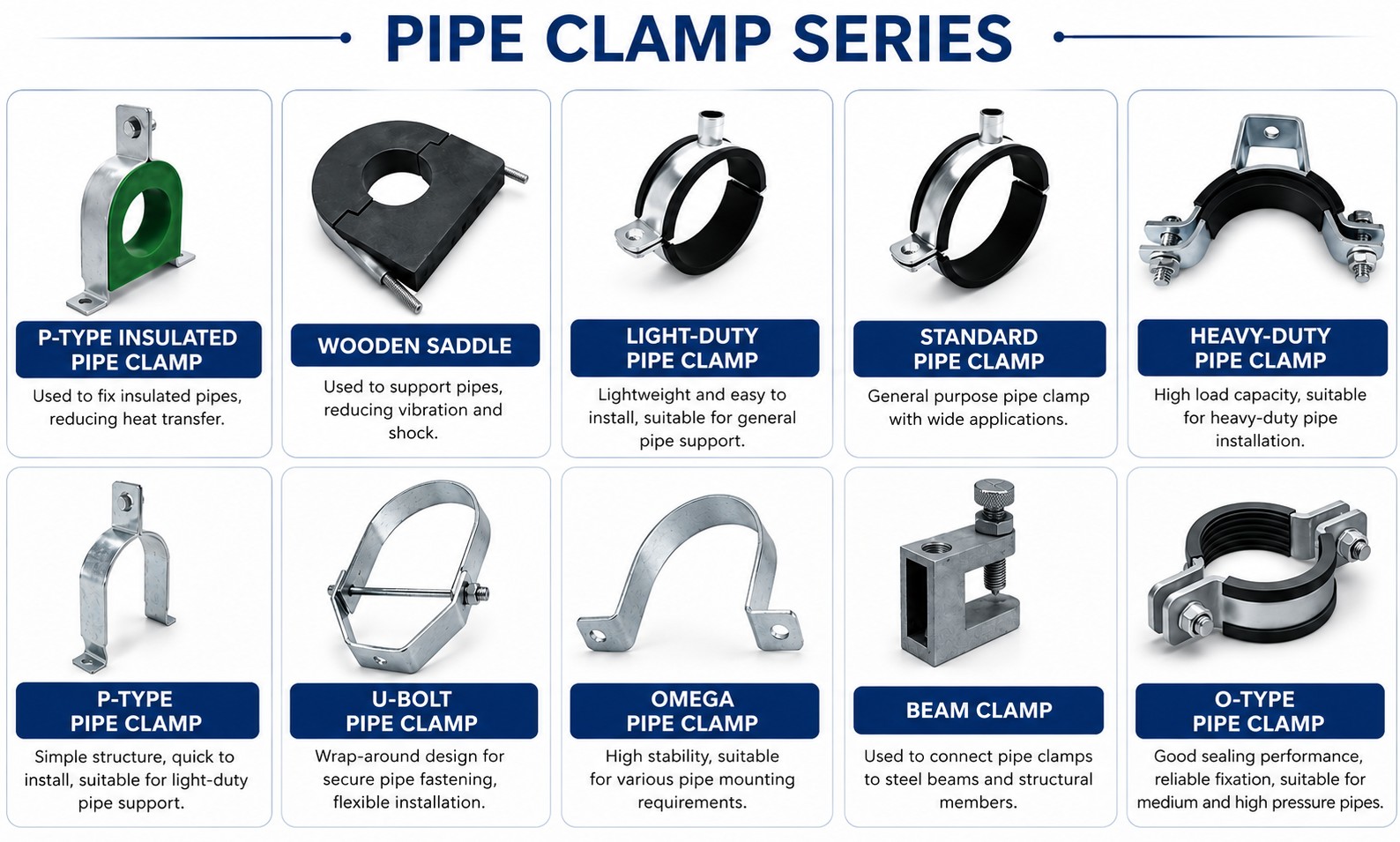

Pipe clamps overview — P-type insulated clamp, wooden block support, light, standard and heavy-duty clamps, P-clamp, U-bolt clamp, omega clamp, throat clamp and O-type clamp — Full pipe clamp range — click image to zoom

Clamp Types

Pipe Clamps in Detail

Ten clamp styles for every pipe and duty. Q235B steel, zinc-chromate coating standard; electro-galvanized or hot-dip galvanized on request.

Zoom

P-Type Insulated Clamp

For insulated pipework; limits thermal bridging, protects insulation.

Wooden block pipe support for insulated pipe

Zoom

Wooden Block Support

Insulation support block for chilled / cold pipework.

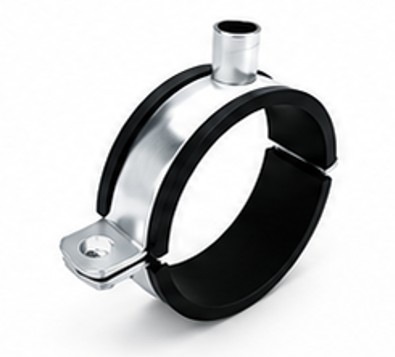

Light-duty pipe clamp with rubber lining

Zoom

Light-Duty Clamp

Single-screw clamp with rubber lining for light pipe runs.

Zoom

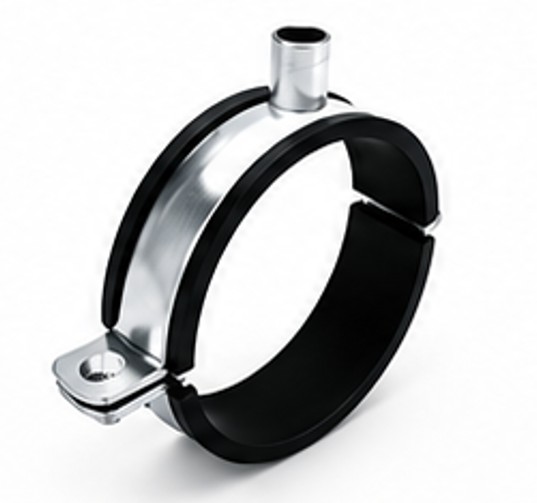

Standard Clamp

Two-screw clamp with rubber lining for general MEP piping.

Zoom

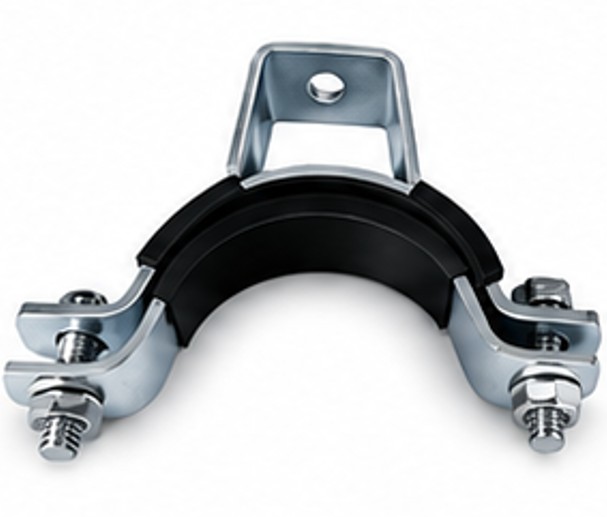

Heavy-Duty Clamp

Reinforced clamp for large-bore and high-load pipe.

Zoom

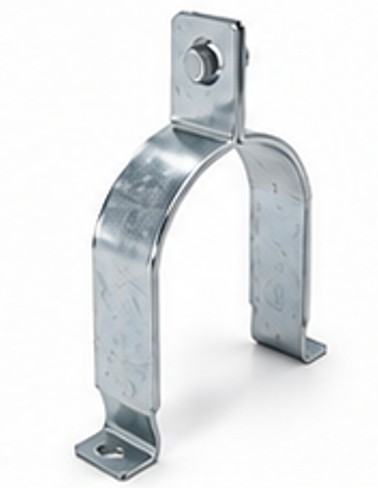

P-Type Clamp

P-shaped clamp for DN100 and below standard sizes.

Zoom

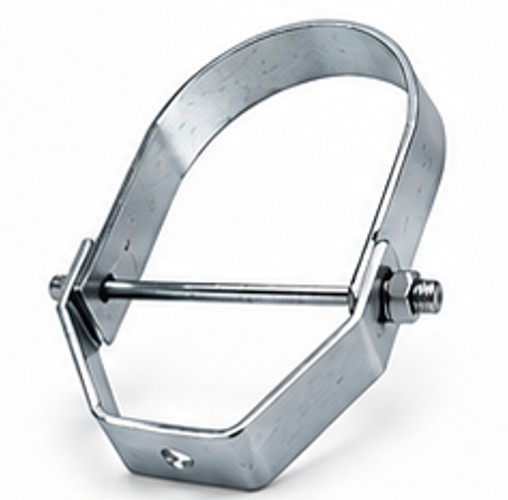

U-Bolt Clamp

U-bolt / saddle clamp; design load 4.75 kN.

Zoom

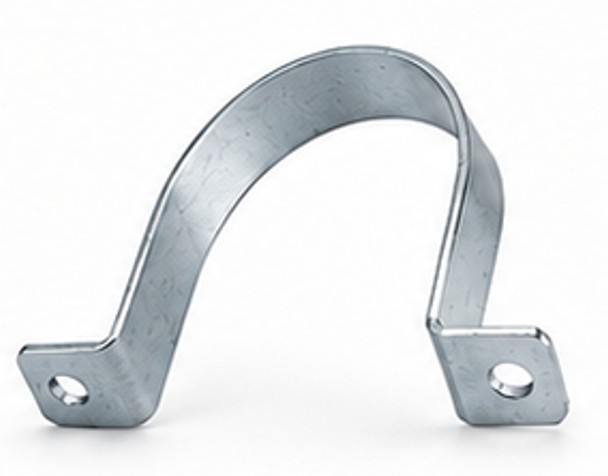

Omega Clamp

Ω-shaped saddle clamp for surface-mounted pipe.

Zoom

Throat (Tiger) Clamp

Beam-grip clamp for fixing to steel flanges.

Zoom

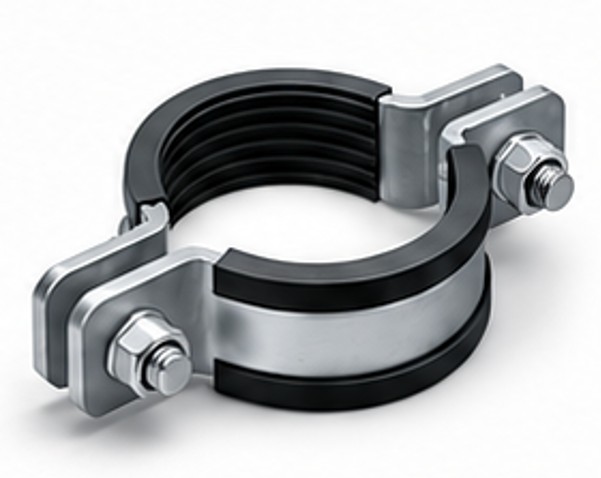

O-Type Clamp

Split ring clamp DN65–DN300; design load 9.5 kN.

Specifications

Size & Load Charts

O-Type Pipe Clamp

Size DN	Pipe OD D (mm)	Design Load (kN)
65	63.5–76.1	9.5
80	88.9	9.5
100	101.6–114	9.5
125	133–140	9.5
150	159–168	9.5
200	219	9.5
250	273	9.5
300	325	9.5

U-Type (Saddle) Pipe Clamp

Size DN	Pipe OD D (mm)	Design Load (kN)
65	63.5	4.75
65	76.1	4.75
80	88.9	4.75
100	101.6	4.75
100	108	4.75
100	114	4.75
125	133	4.75
125	140	4.75
150	159	4.75
150	168	4.75

P-Type Pipe Clamp

Size DN	Pipe OD D (mm)	Design Load (kN)
65	63.5–76.1	9.5
80	88.9	9.5
100	101.6–114	9.5
125	133–140	9.5
150	159–168	9.5
200	219	9.5
250	273	9.5
300	325	9.5

Material Q235B (GB/T 700-2006). Surface: zinc-chromate coating to GB/T 18684-2002; electro-galvanized / hot-dip galvanized on request. Custom sizes available.

FAQ

Common Questions

What pipe clamp types do you offer?

O-type, U-type (saddle), P-type and omega clamps, plus insulated P-clamps, wooden block supports, throat (tiger) clamps and light / standard / heavy-duty clamps.

What size range and load?

DN65–DN300. O-type and P-type design load 9.5 kN; U-type 4.75 kN, depending on size.

Material and finish?

Q235B steel to GB/T 700-2006, zinc-chromate coating to GB/T 18684-2002 standard; electro-galvanized or hot-dip galvanized on request.

Do you have insulated clamps?

Yes — P-type insulated clamps and wooden block supports carry insulated pipework while limiting thermal bridging.
